Mazda 2

Group Tab


The All-New Mazda2 follows the Mazda CX-5, Mazda6 and Mazda3 to become the fourth model and first small passenger car-entry level sedan to join Mazda’s line-up of new-generation vehicles that adopt the ‘KODO—Soul of Motion’ design language and full range of SKYACTIV Technology.

It is the third generation of the Mazda2, which has consistently brought new value to the B-segment since the launch of the original model in 2002.

The development goal for the All-New Mazda2 was to inspire a new group of Mazda fans by creating a vehicle capable of helping youthful, forward-thinking customers to express themselves, and support them as they grow and enjoy new experiences.

The newly developed fuel-efficient SKYACTIV-G 1.5L engine with SKYACTIV-DRIVE transmissions are your passport to a world of driving that is both exciting and eco-friendly. The SKYACTIV-BODY is engineered to be lighter in weight with better safety performance and increased rigidity. And the SKYACTIV-CHASSIS delivers even more of Mazda's famous feeling of oneness between the car and you, the driver.

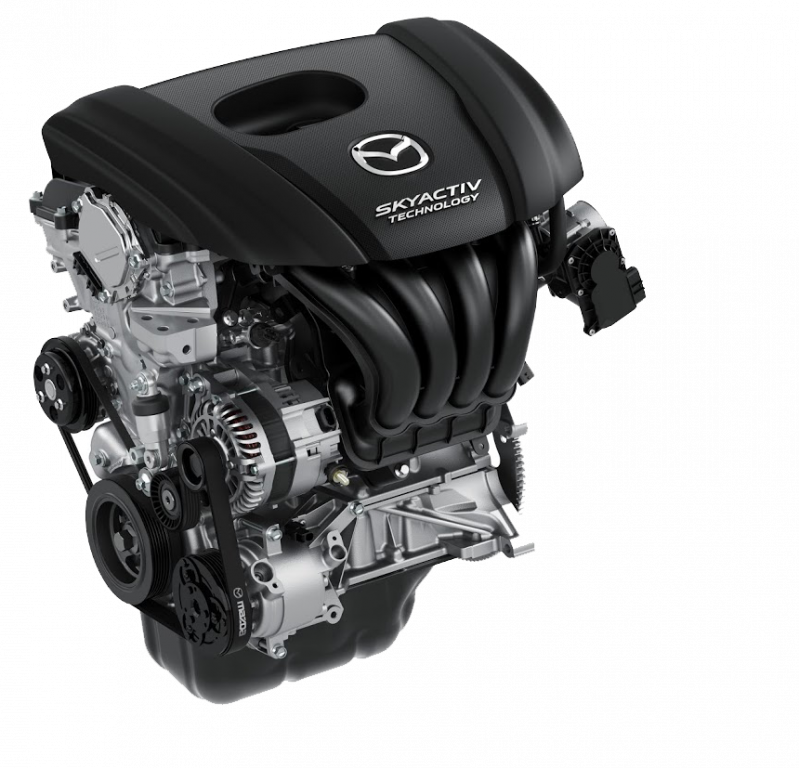

SKYACTIV-G engines

SKYACTIV-G engines

High efficiency SKYACTIV-G direct-injection petrol engines are your passport to a world of driving that is both exciting and eco-friendly.

SKYACTIV-G 1.5L petrol engine with 4-2-1 exhaust system and i-stop

Compression ratio: 14.0
Maximum Output: 85kW/6000rpm
Maximum Torque: 148Nm/4000rpm
Fuel Economy: 5.2L/100km

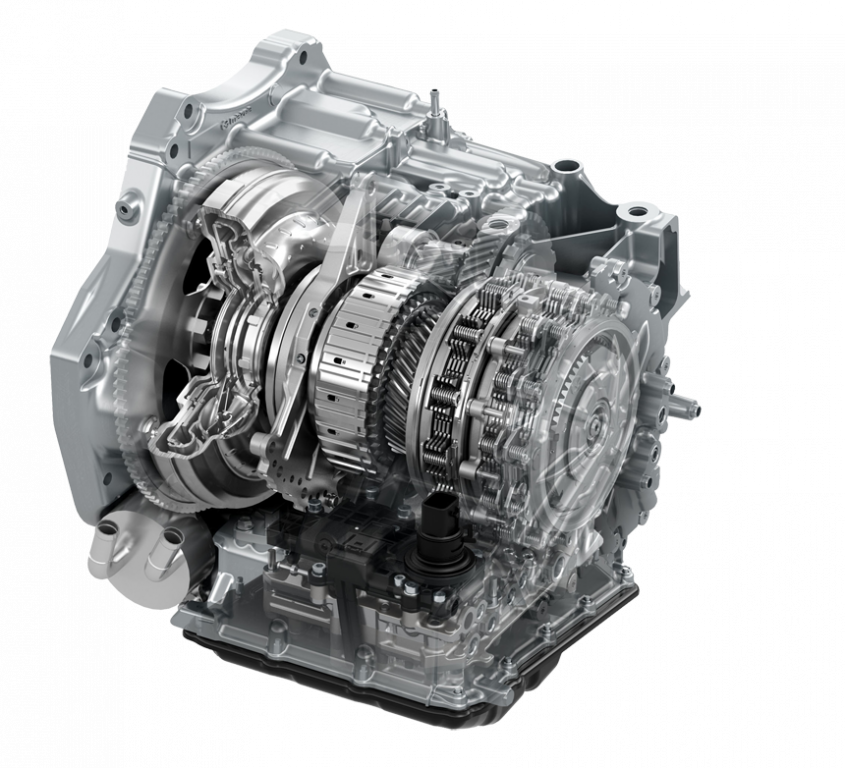

A newly developed, compact 6-speed automatic transmission that achieves excellent fuel economy, a direct feel similar to that of a manual transmission, as well as smooth and powerful acceleration.

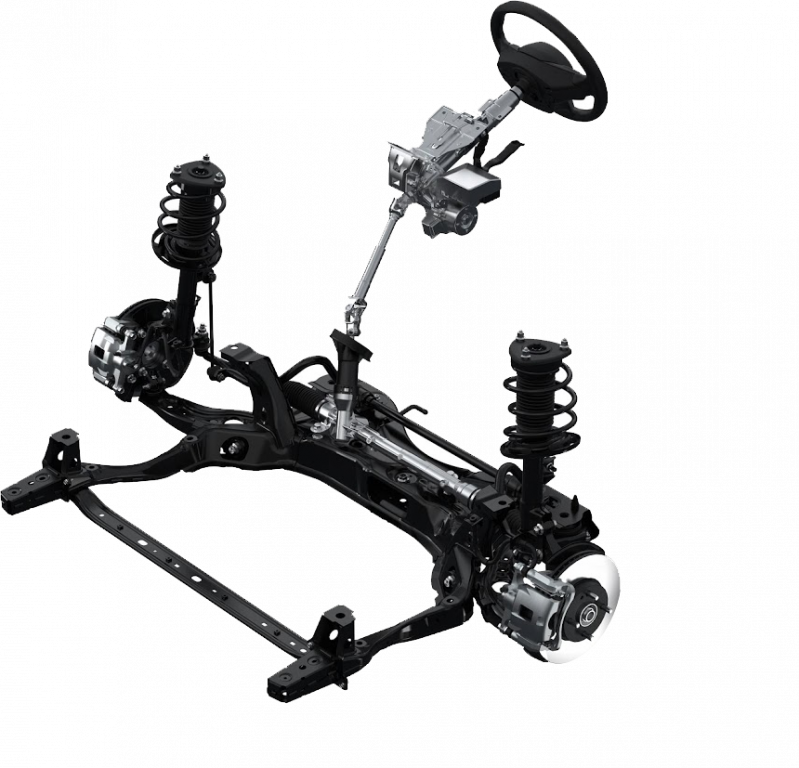

The All-New Mazda2 adopts MacPherson struts in the front and a torsion beam suspension system in the rear that is light weight and offers advantages in terms of packaging. Including standard SKYACTIV Chassis technology such as an increased caster trail and angle, and a repositioned rear suspension mounting point, the suspension adopts front and rear dampers with a friction control function and other refinements to achieve both nimble driving performance and ride comfort.

A quicker steering gear ratio makes the steering wheel on All-New Mazda2 more responsive. It also adopts a rigid steering mount for the first time on a Mazda passenger car to improve linearity as well as overall steering system rigidity.

The brake system employs ventilated discs in the front and drum brakes in the rear. They deliver more linear and precise control characteristics, along with greater operating ease and braking power.

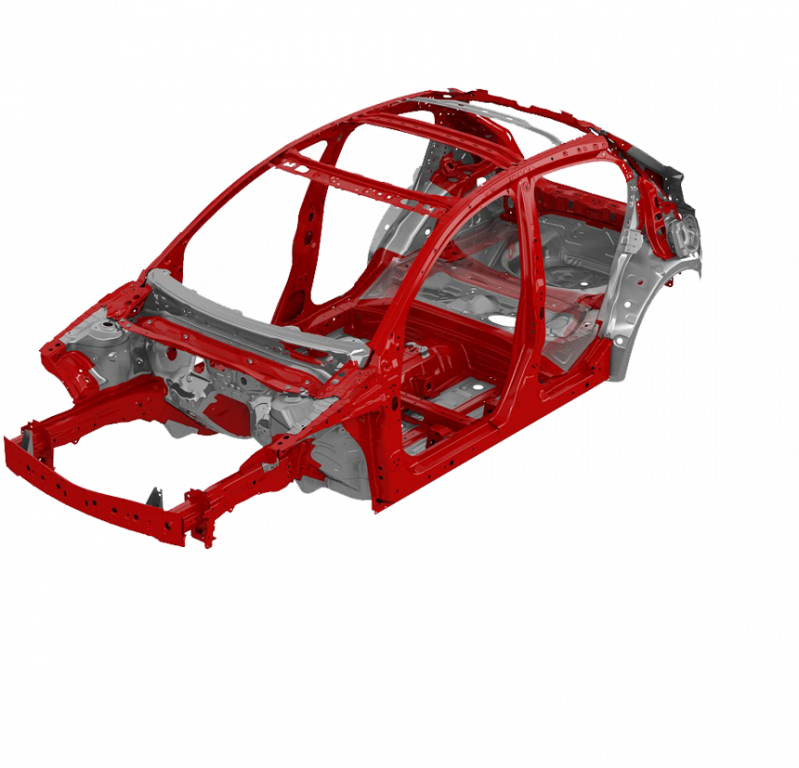

The SKYACTIV-Body for the All-New Mazda2 has an even simpler frame layout and optimised cross-section shapes while basically inheriting the same outstanding architecture used on other Mazda models. Measures implemented on every detail of the body, to increase rigidity and improve damping feel without increasing weight, result in a 22 percent increase in torsional rigidity when compared to the previous model.

The simple, lightweight frame layout helps reduce “Body in White” weight by approximately 7 percent over the previous model. The All-New Mazda2 greatly expands the usage ratio of high tensile steel, which contributes to a reduction in weight while maintaining high strength.

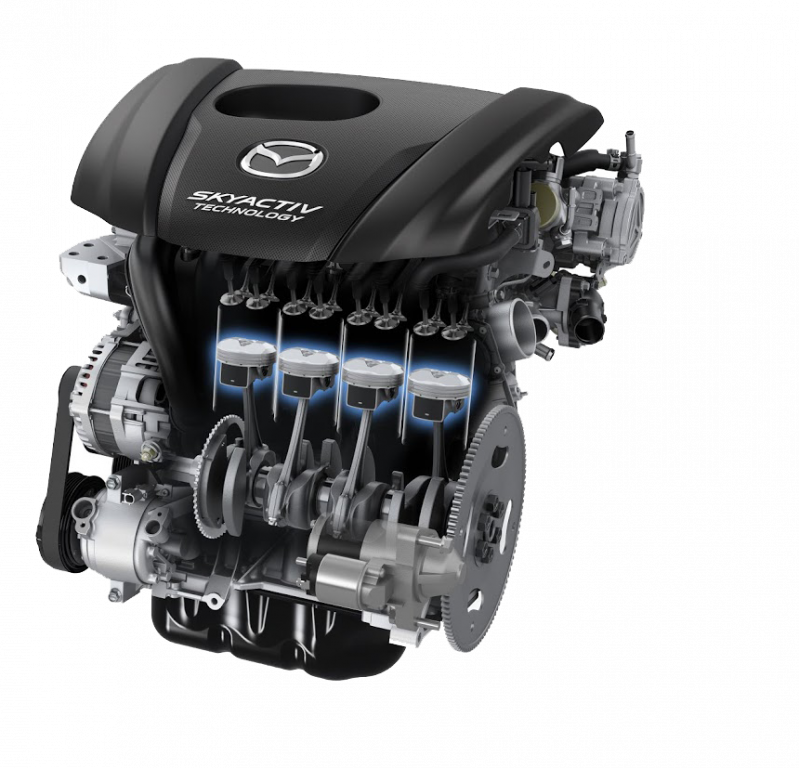

The All-New Mazda2 is equipped with Mazda’s i-stop idling stop system which helps deliver smooth stopping and starting along with excellent fuel economy.

The system automatically stops the engine when the driver presses the brake pedal and stops the car. When subsequently releasing the brake to move off again, fuel is injected directly into the engine’s cylinder and combusted to automatically restart the car in approximately 0.35 seconds.

The further evolution of the All-New Mazda2 allows the system to operate at lower water temperatures after the engine is started than on previous iterations. This makes it possible to use the idling stop system sooner after starting the engine and improves real-world fuel economy numbers.

Human-Machine Interface (HMI) design

Human-Machine Interface (HMI) design

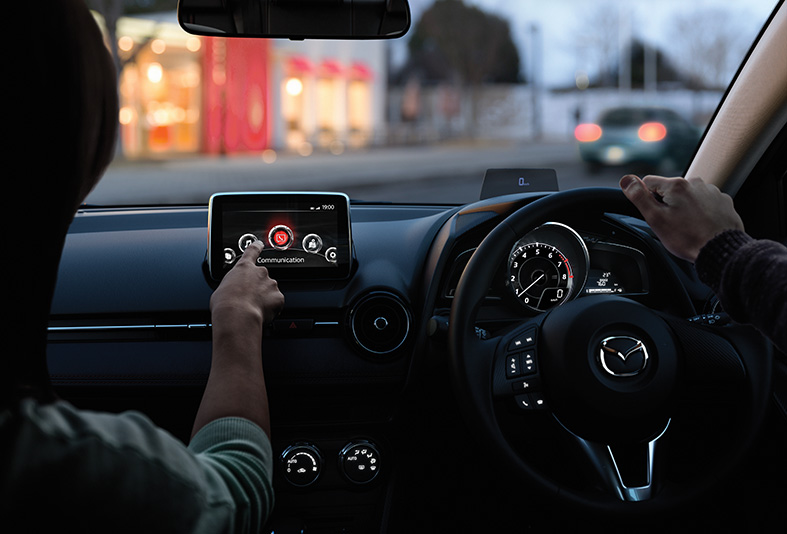

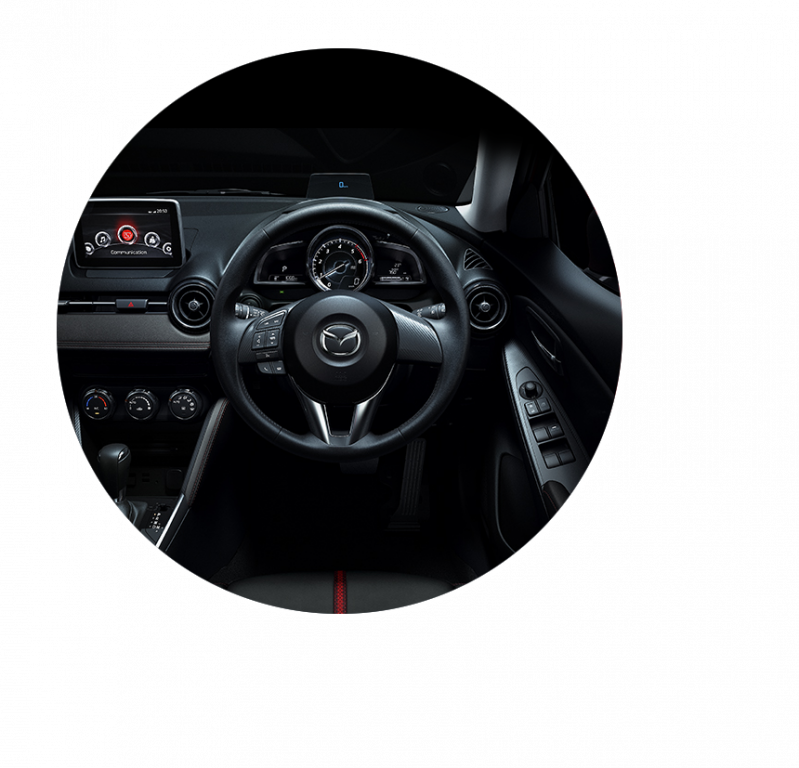

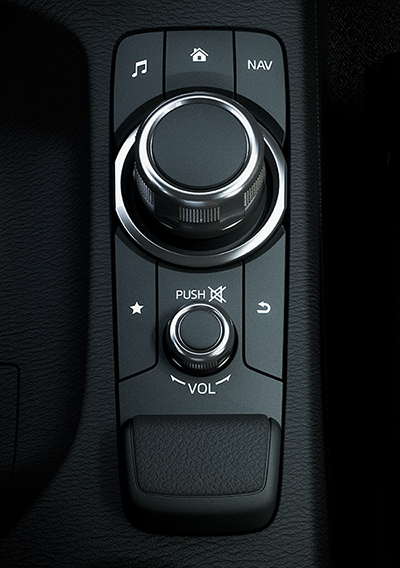

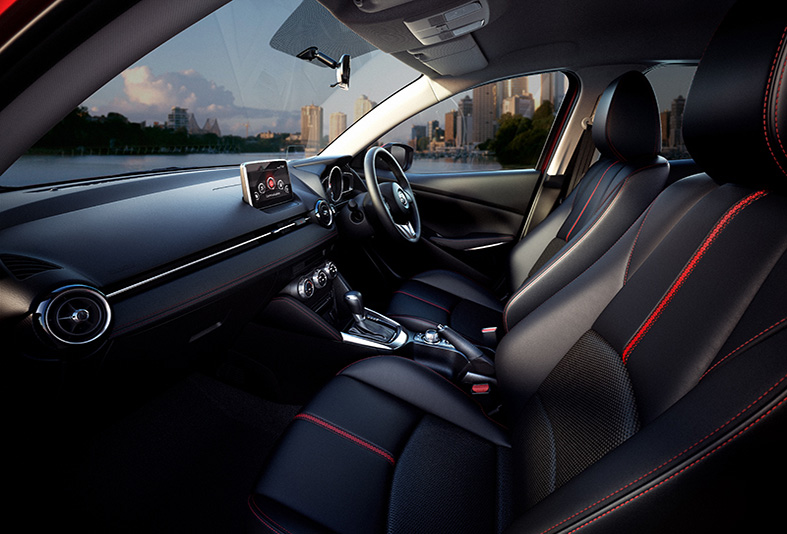

For display and operation systems, the new Mazda2 adopts Mazda’s HMI based on its Heads-up Cockpit concept, which was first employed in the Mazda3. The Active Driving Display is positioned on top of the meter hood, a seven inches centre display is mounted on the dashboard, and the commander control is positioned atop the floor console.

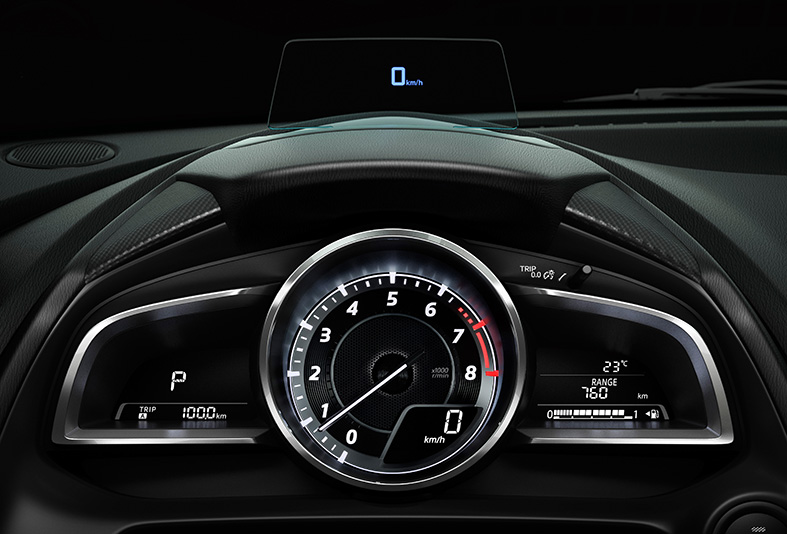

The new meter cluster design features a round analogue meter in the centre, flanked on the left and right by a pair of wing-shaped digital displays. On the high-grade specification new Mazda2, a tachometer with an integrated digital speedometer in it is placed in the centre. The other grades place a speedometer in the centre and a digital tachometer in the display wing on the left.

Surrounded by a metallic ring and featuring an elaborate three-dimensional dial face, the centre meter creates a sporty, high-quality design.

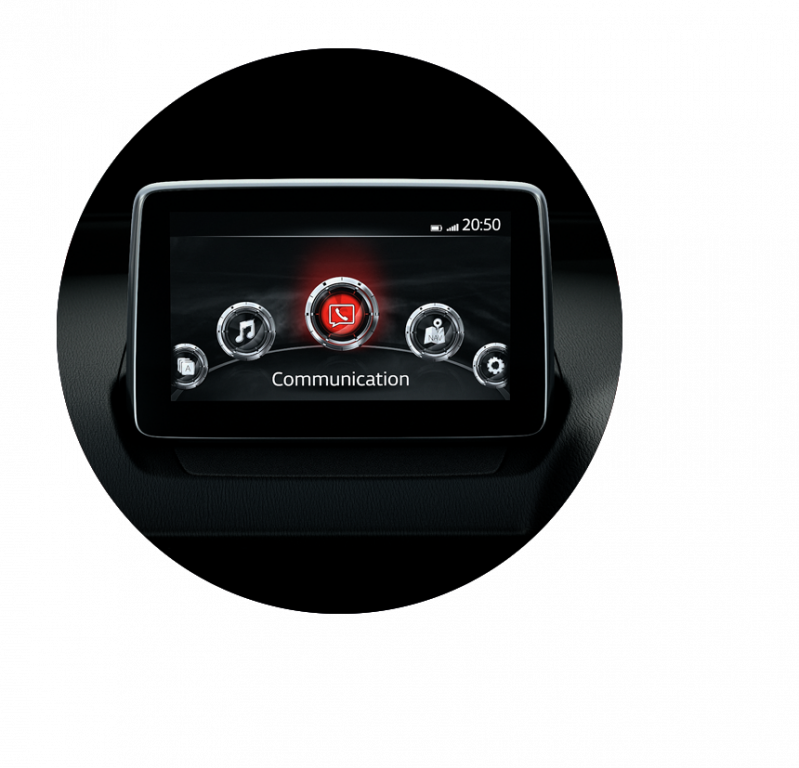

The All-New Mazda2 adopts MZD Connect on selected grades, the new-car connectivity system that was first introduced on the new-generation Mazda3.

This system is safe and simple to operate and allows easy access to internet connectivity and social networking services that today’s customers consider essential, even when in transit. It responds to a wider variety of needs by greatly improving the convenience of functions that require Bluetooth® connectivity, such as hands-free phone operation, the delivery of short text messages, and internet radio including Aha™ by HARMAN.

By supporting the ongoing evolution of communications equipment on both the hardware and software levels, this innovative platform ensures that customers always have access to the latest services without swapping out any hardware.

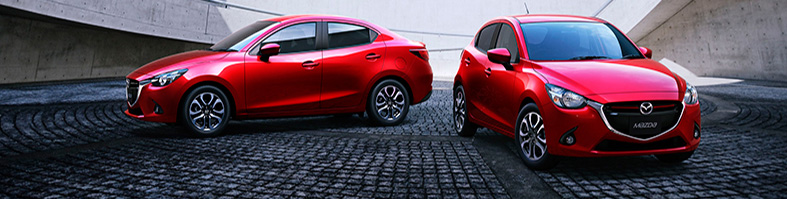

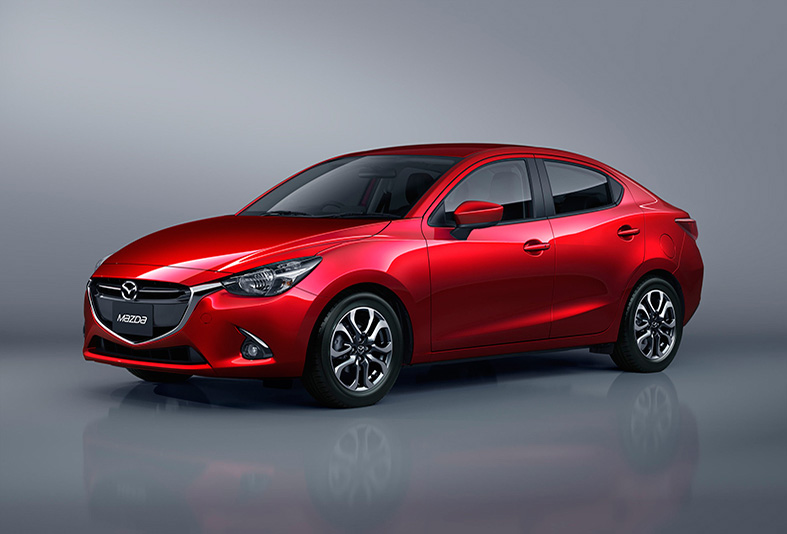

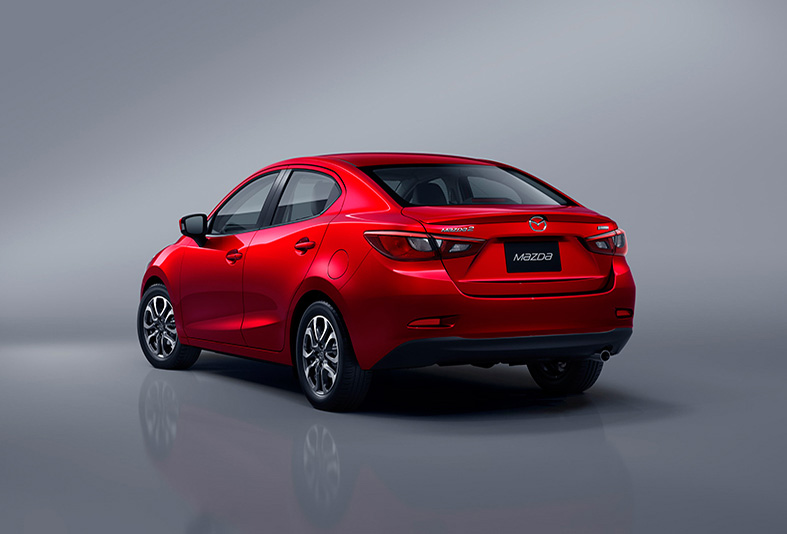

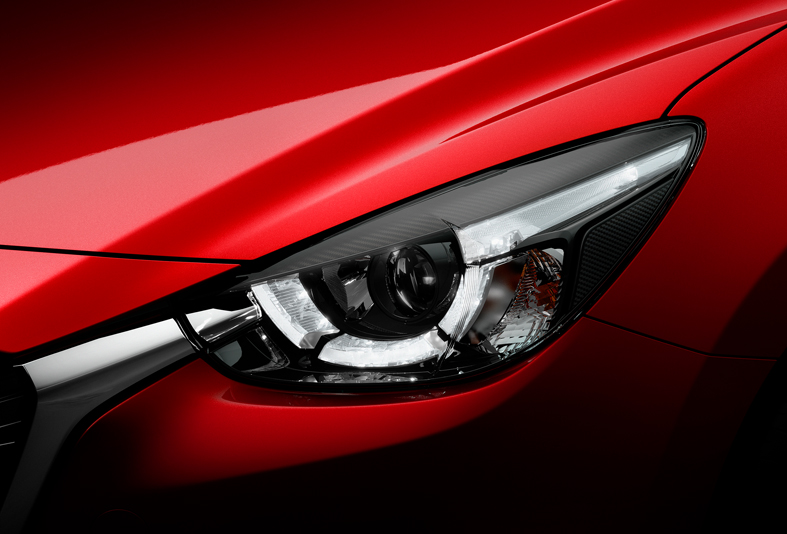

KODO captures the very instant energy becomes motion. It’s the muscular beauty you see when an animal pounces, or when a human leaps into action. Everywhere you look, this dynamic poise is enhanced by elegant detail. The five-point grille, defining body lines and powerful stance brings the all new Mazda2 to life.



A physique that conveys a sense of explosive forward momentum through its expression of condensing and releasing energy.

Mazda’s ‘KODO—Soul of Motion’ design language is re-engineered for its compact body

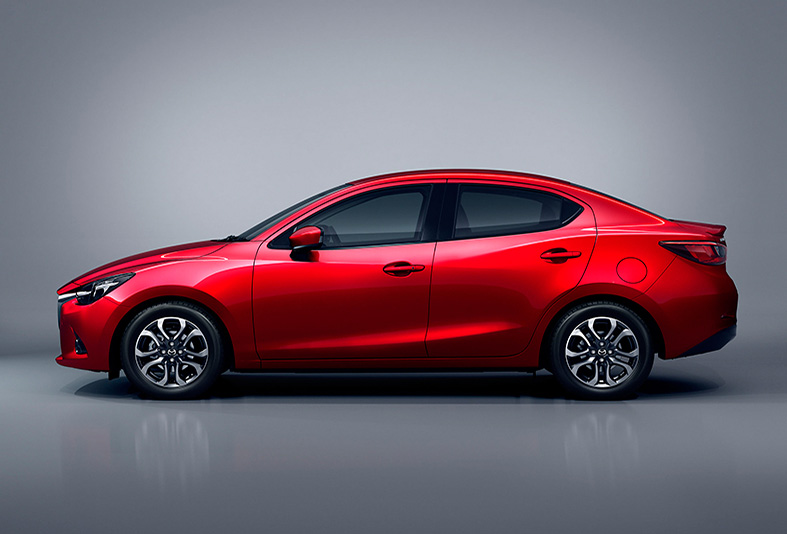

A dynamic silhouette created by positioning the compact cabin toward the rear of the lower body’s forward inclined lines

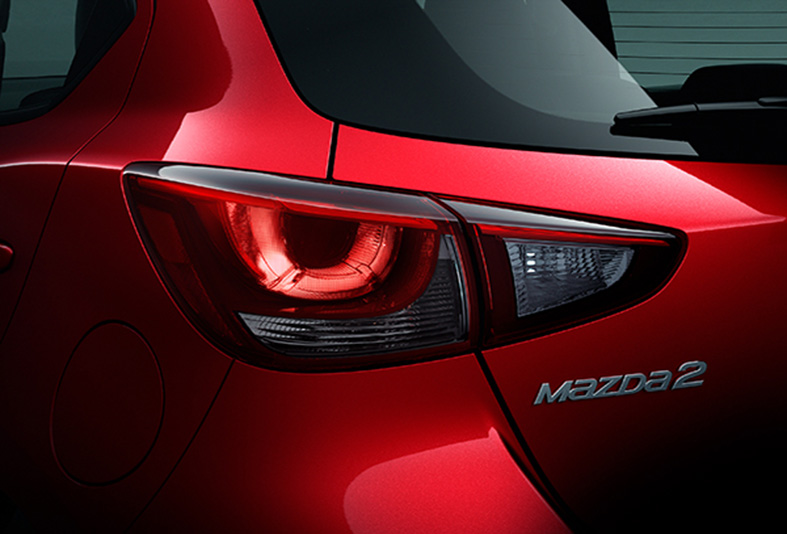

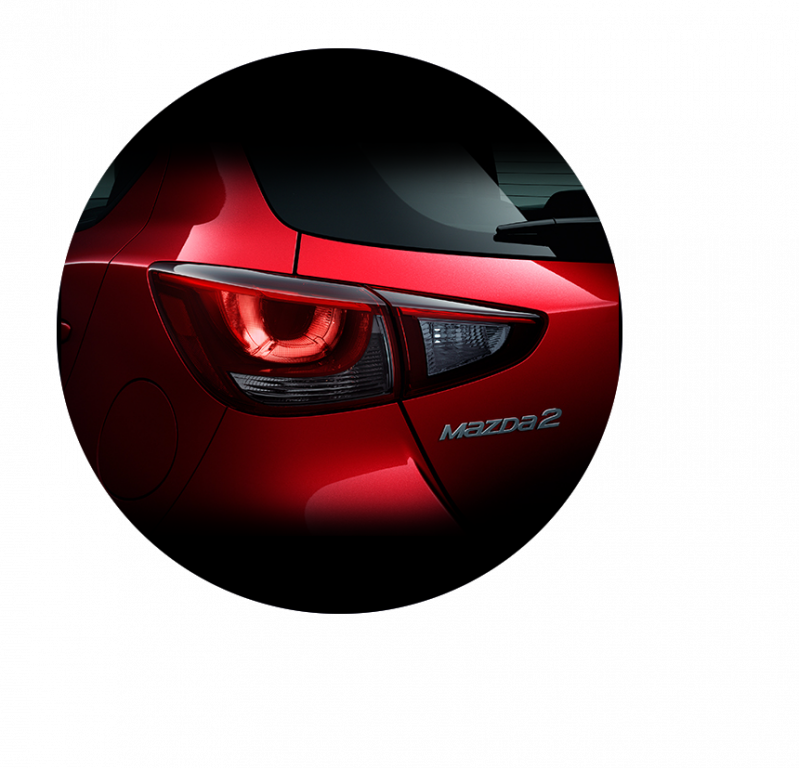

The look of condensed energy created by the line of the kicked-up rear shoulders is forcefully released as the character line travels toward the front of the body. The overall effect of this body design is that of explosive forward momentum

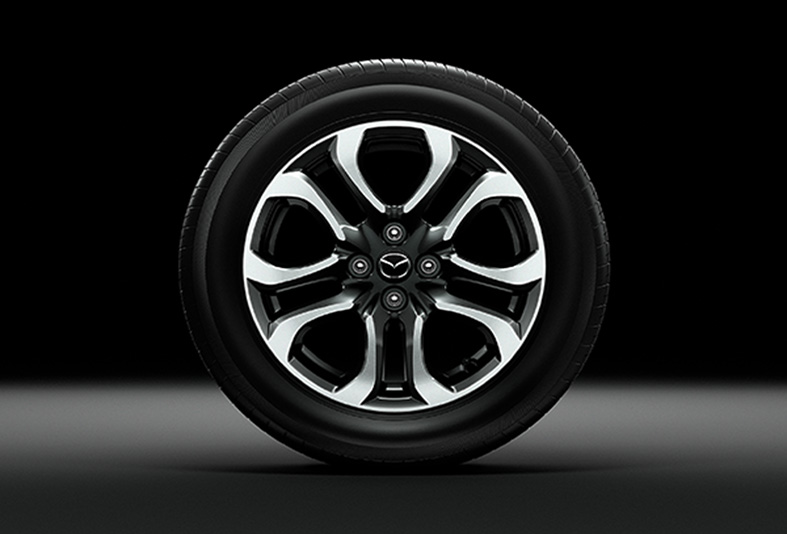

Powerful stance with large tyres positioned as close as possible to the four corners of the body to create a short overhang and achieve a wide track

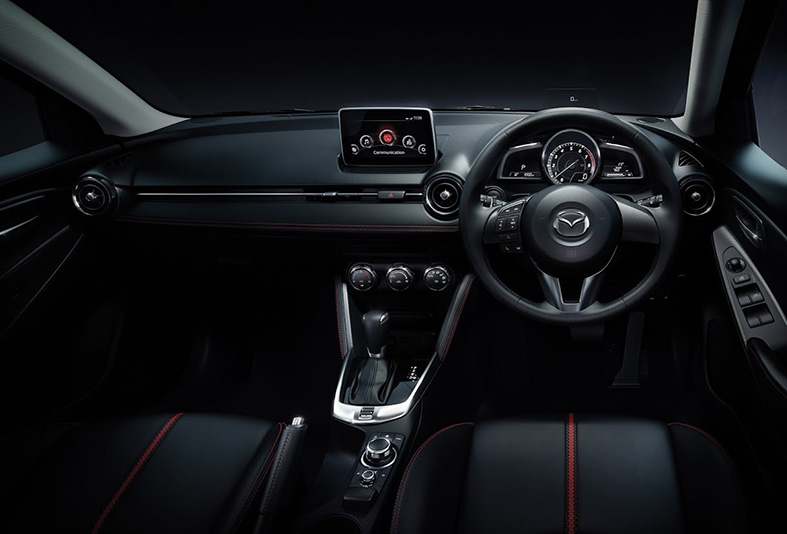

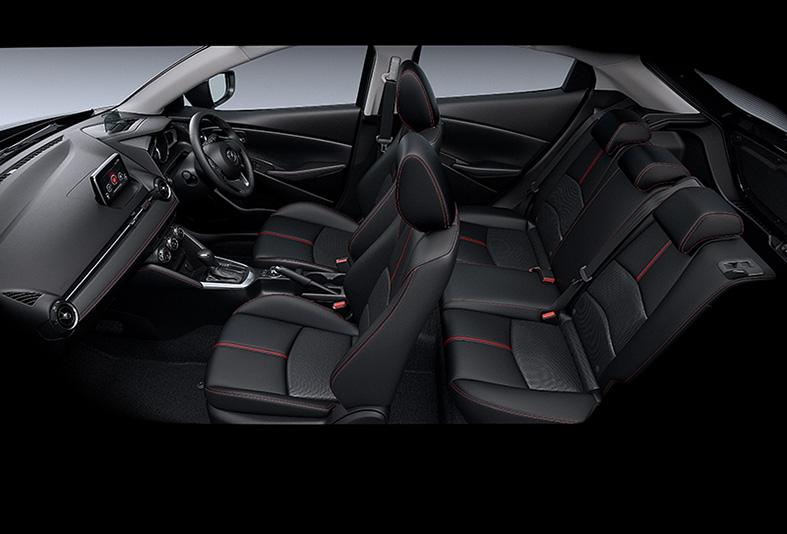

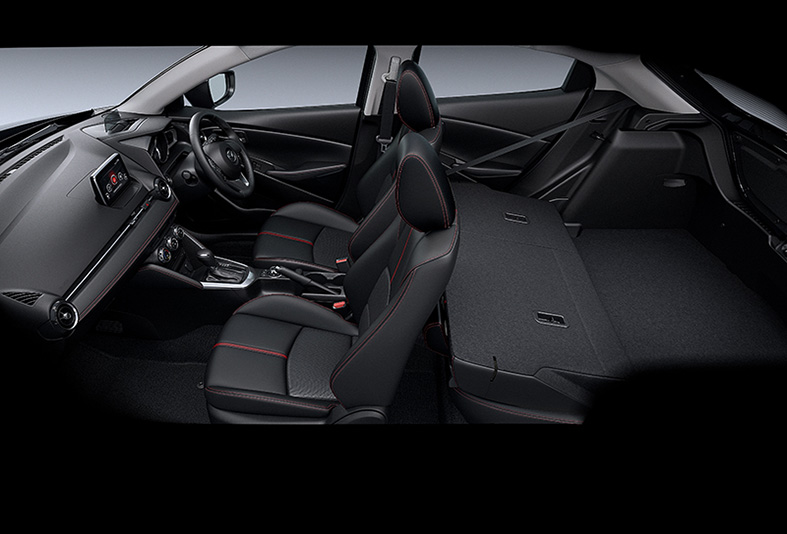

Finely crafted interior quality that greatly surpasses notions of the class.

High-quality components inherited from the Mazda3

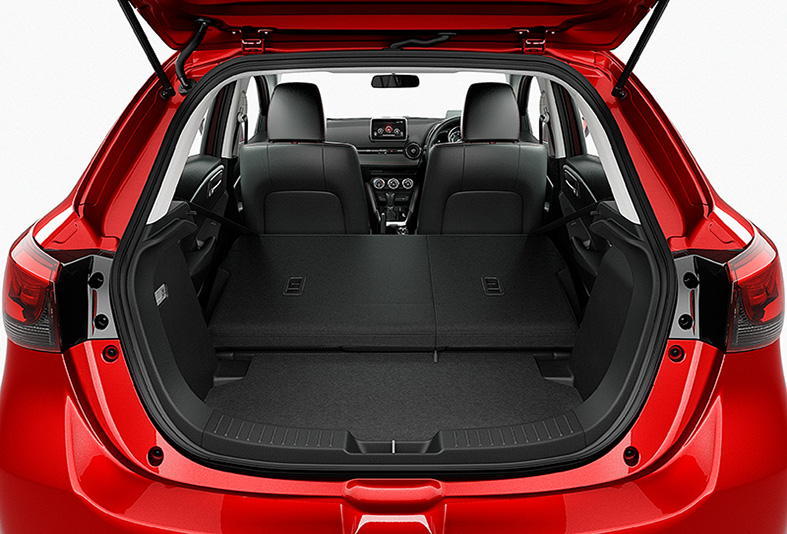

A new floor console provides versatile functionality and features a wide design with presence that surpasses other offerings in the class


Engine & Transmission

Wheels & Suspension

Fuel Consumption (L/100km)*

Dimensions & Weight


Suspension - MacPherson Struts (Front) / Torsion Beam (Rear)

5.2 (Combined)


In-line 4 Cylinder

Brakes - Ventilated Disc (Front) / Solid Disc (Rear)

Length - 4,320mm

DOHC 16 Valve

Tyre Size - 185/60 R16

Width - 1,695mm

Displacement - 1,496cc

Height - 1,495mm

Maximum Output - 114 / 6,000 Hp/rpm

Maximum Kerb Weight - 1,065kg

Maximum Torque - 148 / 4,000 Nm/rpm

Fuel Injection - Electronically


Controlled Direct Injection

Length - 4,060mm

Fuel Tank Capacity - 44L

Width - 1,695mm

Electronic Power Assisted Steering (EPAS)

Height - 1,470mm


Maximum Kerb Weight - 1,056kg
